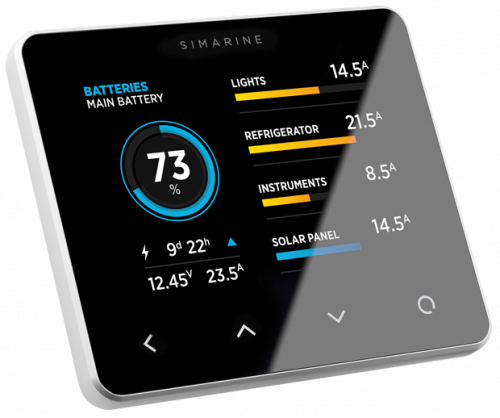

PICO is SIMARINE’s advanced battery monitor and the Real-Time Battery Health™ Algorithm for precise battery health measurements. It sets new standards for marine battery monitors in fields of design, functionality, connectivity and ease of use.
Compatible with all SIMARINE shunts and modules.

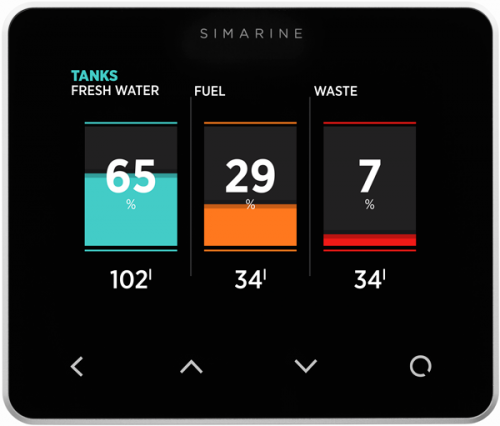

Its expandable architecture allows adding up to 20 SIMARINE shunts and modules to monitor all kinds of boats, yachts and caravans – from a small one to a superyacht system with up to 6 battery banks, 14 tanks and 20 independent consumer and generators.

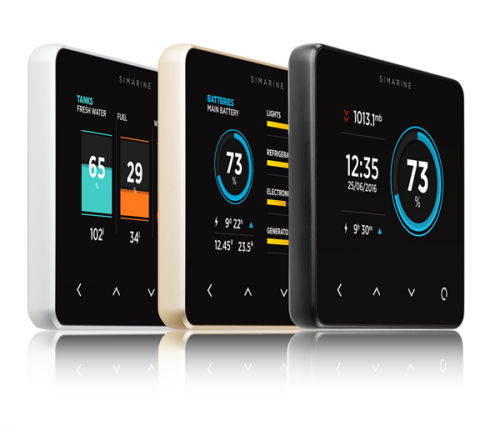

PICO’s display unit is made of a sleek anodized aluminum casing and a thick Gorilla® Glass with Anti-Reflective coating protecting the optically bonded high-contrast 3.5 inch IPS LCD display. It’s water and dust proof and can be mounted both indoors and outdoors. The screen brightness is automatically adjusted with a light sensor. The device is operated by four water tolerant CapSense® touch buttons.
The (optional) barograph gives precise air-pressure readings, trends, and history.
Free SIMARINE Android and iOS Apps are available to connect your PICO to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.
Barograph function included.
General specification
- Display: LCD TFT 3,5” High resolution IPS, Gorilla Glass, anti-reflective coating
- Human interface: 4 Touch buttons, water resistant
- Enclosure: CNC-milled anodized aluminum, water- and dustproof
- Dimensions: HxWxD 98 x 83 x 10 mm
