B744V, Bronze-Triducer mit Anpassblock E66023
mit Stecker zum Anschluss an Fischfindermodul Raymarine CP370, DSM30, DSM300
| B774V FEATURES |
| Description |

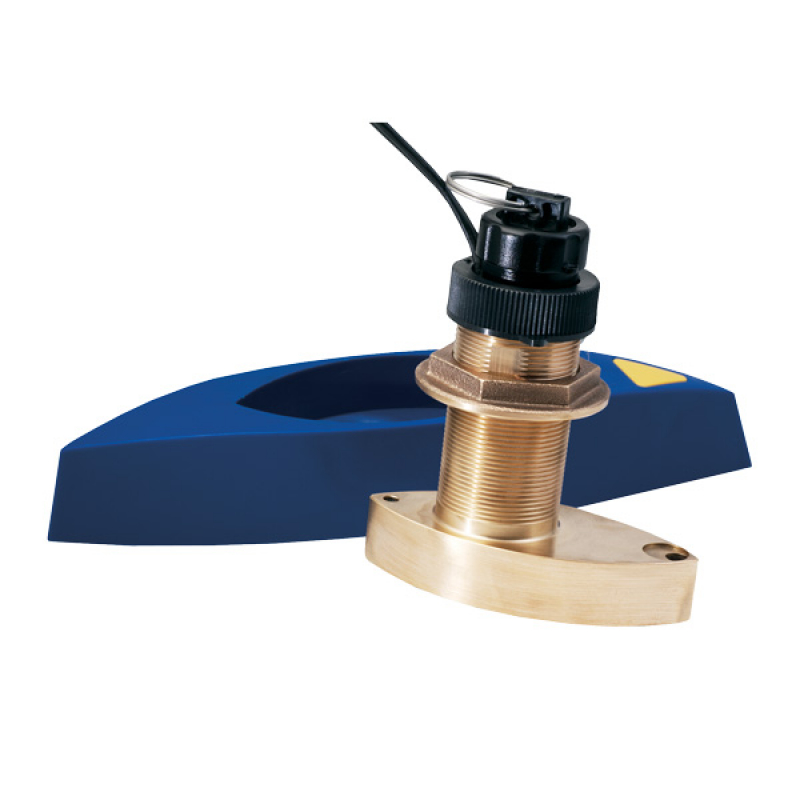

600W Bronze Through Hull Transducer with High-Speed Fairing |

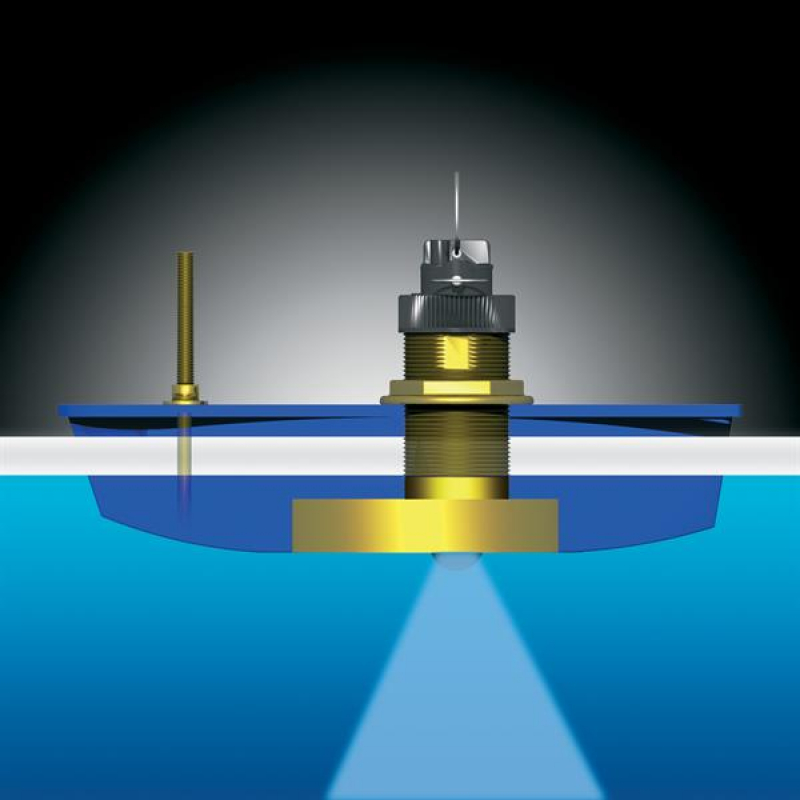

| Installation |
Through Hull |
| Material |
Bronze |
| Power (RMS) |
600W |
| Max Depth (Ft) |
L: 1,200 / H: 700 |
| Frequency (KHz) |
50 / 200 |
| Beam Width (L/H) |
45°/12° |
| Records |
Depth / Speed / Temperature |
| Approved Hull Material |
Fiberglass / Wood |
| Cable Length (Ft/M) |
33ft / 10m |
| Supported Deadrise / Transom Angles |
0-24° Deadrise |
| Part Number |
A66091 |
| Additional Notes |
The B744V offers great triducer performance in a single thru-hull package. The included fairing block ensures reliable performance at speed. |
